AFM探針描述
適用的Sample:
Bio Molecules,Cells,Other Soft Sample,Polymers
適用的AFM機(jī)型:
DimensionIcon,DimensionXR,Innova,JPK,MultiMode,Non-Bruker
適用的Work Mode:
contact,Force spectroscopy,peakforce tapping,tapping or non-contact
適用的Application:
Fluid Imaging,General Topography,Mechanical Force Curves,Pulling
Coating 描述
| cantilever Back side coating | Reflective gold |
|---|---|
| tip coating | -- |

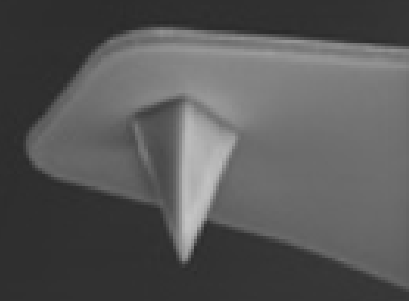

Tip 規(guī)格
| tip geometry | Rotated (Symmetric) |
|---|---|
| tip radius (Nom) | 10nm |
| tip height | 2.5-8.0um |
| Front Angle (FA) | 15±2.5° |
| Back Angle (BA) | 25±2.5° |
| Side Angle (SA) | 17.5±2.5° |

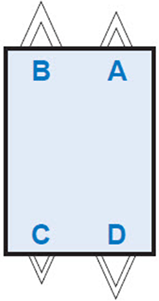

Cantilever 規(guī)格
| cantilever geometry | Triangular |
|---|---|
| K(Nom) | 0.35N/m,0.12N/m,0.24N/m,0.06N/m |
| Frequency(Nom) | 65KHz,23KHz,56KHz,18KHz |
| length(Nom) | 120um,205um,120um,205um |
| thickness(Nom) | 0.6um |
| cantilever material | Silicon Nitride |
| top layer back | 45±5 nm of Ti/Au |
