• Manufacturer: Bruker
  • Cantilever Coating:
  • Tip Geometry: High Aspect Ratio
  • Number of Cantilevers: 1個懸臂
    F320KHz K42N/m L125um
AFM探針描述

適用的Sample:
Data Storage,Semiconductors

適用的AFM機型:
DimensionIcon,DimensionXR,Insight

適用的Work Mode:
tapping or non-contact

適用的Application:
General Topography,Holes/ Trenches,Ultra Hi-Res

Coating 描述
tip coating --

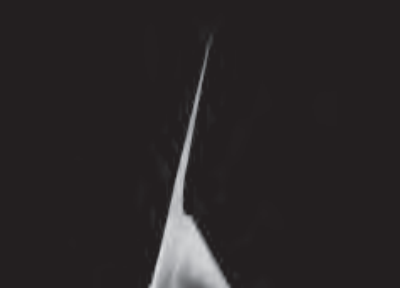

Tip 規格
tip geometry High Aspect Ratio
tip radius (Nom) 10nm
tip height 10-15um
Front Angle (FA) 2±0.5°
Back Angle (BA) 2±0.5°
Side Angle (SA) 2±0.5°
Spike Height 1500nm
Spike Width 100nm

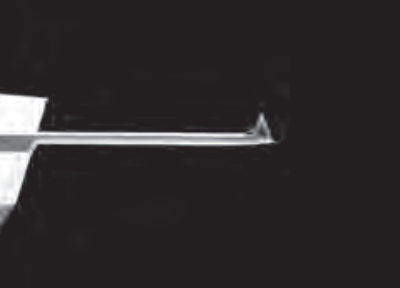

Cantilever 規格
cantilever geometry Rectangular
K(Nom) 42N/m
Frequency(Nom) 320KHz
length(Nom) 125um
thickness(Nom) 4um
cantilever material 0.01 - 0.025 Ωcm Antimony (n) doped Si
top layer back --
